DVB to IP Gateway

The DVB-to-IP Gateway receives broadcast television from satellite, cable or terrestrial sources and streams it onto your IP network. A satellite dish and multiswitch feed the gateway over coaxial cable, and the gateway publishes the channels as multicast or unicast IP, ready for your IPTV platform.

  • Centralized management from our management platform
  • Dual Gigabit Ethernet ports
  • 16 DVB ports
  • Customizable

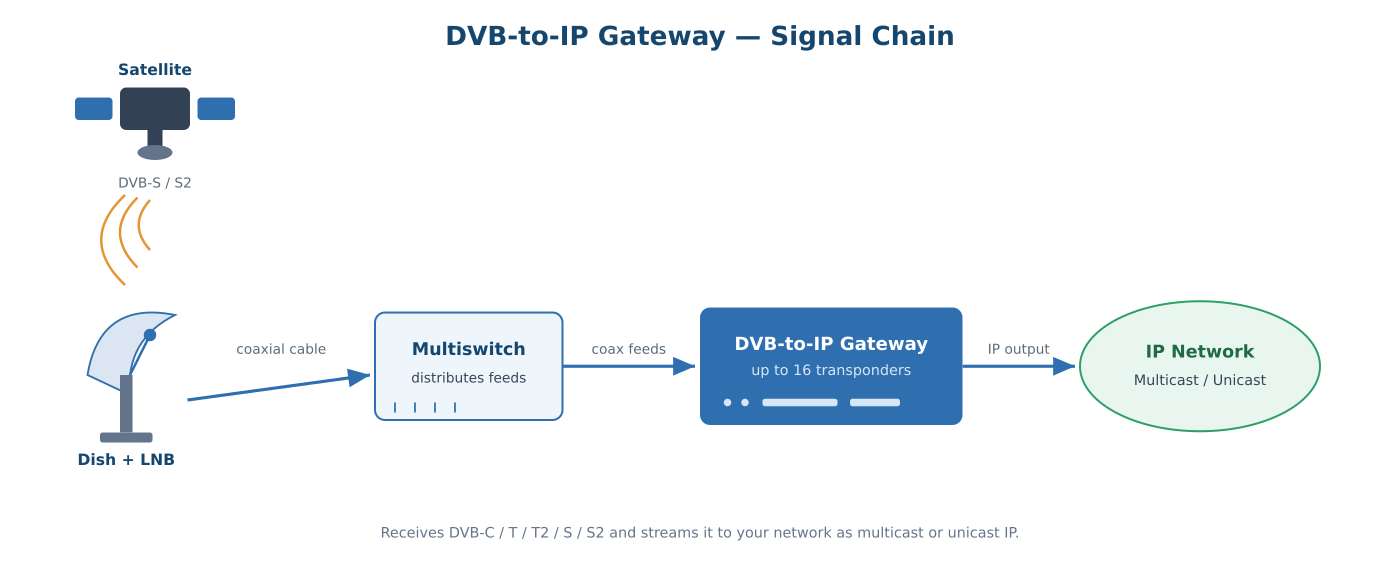

DVB to IP gateway signal chain: a satellite is received by a dish, carried over coaxial cable to a multiswitch, into the DVB-to-IP gateway, then output as multicast or unicast IP to the network
Satellite to dish, over coaxial cable through a multiswitch, into the gateway, and out to your network as multicast or unicast IP.

Features

  • Up to 16 transponders per server
  • Supports DVB-C, DVB-T, DVB-T2, DVB-S and DVB-S2
  • 1 Gbps network output
  • Dual network interfaces with LACP over MLAG for link and switch redundancy
  • Dual, redundant power supplies
  • IP output over multicast or unicast
  • Centralised management through the billing and management platform
